WELLFLOAT Babel

The ultimate model of the Wellfloat series

The ultimate model in the Wellfloat series that suppresses sound distortion with a suspended structure that is well-established for audio files.

Multi-stage pendulum structure (4 layers), which is also used for detecting gravitational waves, controls vibration down to the molecular level.

By making the top board machined from all aluminum, we succeeded in minimizing the squeal of the board part, and at the same time, it fits comfortably with high-end equipment of metal enclosures.

PCT(Patent Cooperation Treaty) pending.

exterior

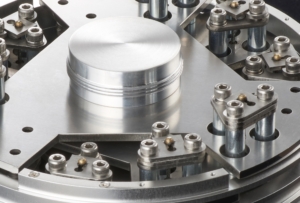

Internal structure

Specification

The highest-grade model in the WELLFLOAT series, which eliminates sound distortion thanks to our patented hanging structure that has a reputation among audio enthusiasts all over the world.

Specification
Design: 12 small WELLFLOAT mechanisms (3 x 4 layers)
Materials: Stainless steel, well-machined solid aluminum
Maximum load weight: 250 kg (static load)
Dimensions: 175mm in diameter, 65mm high Weight: 3.0kg

Due to the anodized finish, the color may vary depending on the lot.

4-layer multi-stage pendulum

Design

Mr. Shiro Nakamura, a world-famous car designer who produced numerous masterpieces such as GT-R and Fairlady Z at Isuzu Motors and Nissan Motors. He has a deep knowledge of music, is an amateur jazz bassist, and also plays the classical cello. He used to use well floats for musical instruments when he played, and he designed a new generation of well floats.

Mr. Shiro Nakamura

Precautions regarding the installation

・ Please Install Babel so that WELLFLOAT logo can be seen in front .
・ Us ing one Babel for the equipment installed above, the maximum effect can be achieved by setting it accurately at the position of the center of gravity of the equipment.
・When placing a tall equipment or a one with a high center of gravity, please pay attention to the balance so that it will not fall over.
・When installing and setting, please do NOT move by holding the top movable part (top plate).
・Please make sure that there is a sufficient flat area and strength on the bottom of your equipment to be placed on top before setting.
・When mounting equipment with screw heads protruding from the bottom plates trength and/or the bottom plate having insufficient,it may be necessary to take measures such as preparing an optional board.
・The maximum load capacity of this product is 250 kg under static load.
・When a heavy device is placed on it, the internal mechanism may b e damaged. So please put it on slowly.
