WELLFLOAT Board - WELLFLOAT English

WELLFLOAT Products for HiFi

This section introduces the WELLFLOAT boards for HiFi

Precautions for the installation of Wellfloat product

・There is a protection sheet between the boards. Please pull this away before using.

・The load capacity of WELLFLOAT stated is the “STATIC” load. Please put the audio equipment on the board as gently as possible to avoid a sudden shock that can exceed the load capacity.

・When installing the equipment, please be careful to avoid bias in the load on one or two internal mechanisms to prevent any risk of damage.

・If you put heavy equipment on the board, please set it up with two or more people.

Please note that specifications, color and design of the products are subject to change without notice.

WELLFLOAT BOARD – Special Coating models (L Series)

Special coating models

The special L series models are finished with “WELL-COATING” which gives an improved performance over our standard models, preventing slippage for better grip on a material level. Additionally, the surface is more robust against both scratches and humidity. Suppressing unwanted vibration between the WELLFLOAT board and devices on and underneath of it will give more stability and improved system playback.

4449L

Supported Load Weight　0-300Kg
Dimensions　W490xD440xH55(mm)
Material　MDF

3545L

Supported Load Weight　0-300Kg
Dimensions　W450xD350xH55(mm)
Material　MDF

WELLFLOAT BOARD – Slim models

Slim Models

The half-height (31mm) ‘S’ model has been developed by combining the current WELLFLOAT mechanism with a bottom board, crafted in steel and will easily fit into on the shelves of the majority of HiFi racks in on the market.

4548S

Supported Load Weight　　0-300Kg
Dimensions　W480xD450xH31(mm)
Material　MDF, Steel

3545S

Supported Load Weight　　0-300Kg
Dimensions　W450xD350xH31(mm)
Material　MDF, Steel

WELLFLOAT Classic Series

Basic models – Classic

The original and best-selling Standard/Normal WELLFLOAT board. Offers a great balance between price and performance.
It is easy to combine with any HiFi equipment thanks to the simple and universal design. It enhances the sound quality with its mechanism and performance.

4050 (TYPE10)

Supported Load Weight　0～300Kg
Dimensions　W500xD400xH56(mm)
Material　MDF

The Wellfloat logo position is changed from the centre to the right side, like the L series and S series.

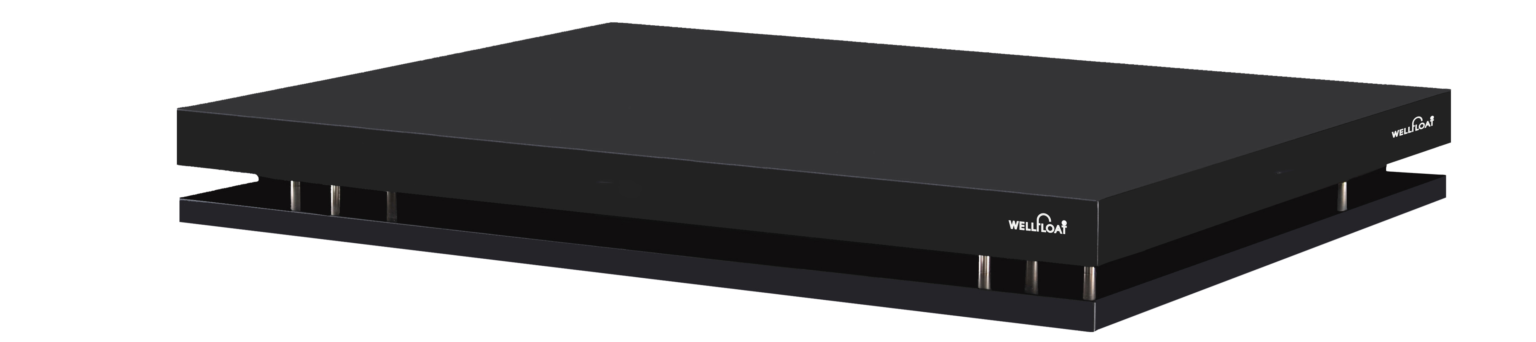

4060 (TYPE30)

Supported Load Weight　0～300Kg
Dimensions　W600xD400xH56(mm)
Material　MDF

The Wellfloat logo position is changed from the centre to the right side, like the L series and S series.

WELLFLOAT Classic PRO

Basic models – Classic PRO

The WELLFLOAT BOARD specifically designed for small monitor speakers used in a professional studio. These WELLFLOAT models are normally used as a pair on the mixer console at a recording studio or an outside broadcast van. The Analogue technology of WELLFLOAT successfully support s all the latest Digital technologies.

2540 (PRO)

Supported Load Weight　0-300Kg
Dimensions　：　W400xD250xH56(mm)
Material　MDF

1 pair (2 units included)

The Wellfloat logo position will be changed as soon as the stock has run out from the centre position to the right side, like the L series and S series.

3040 (PRO II)

Supported Load Weight　0-300Kg
Dimensions　：　W400xD295xH56(mm)
Material　MDF

1 pair (2 units included)

The Wellfloat logo position is changed from the centre to the right side, like the L series and S series.

WELLFLOAT Classic A4 Series

Basic models – Classic A4

The footprint of these models is as small as a piece of A4 paper, giving enhanced performance and flexibility for smaller devices in any field. They feature a robust coating and are ideal for the majority of small speakers on the market. Additionally, they can improve the performance of laptop PCs and other devices used for streaming and networked audio. TYPE A4-G has an improved performance mechanism inside and can support heavier loads.

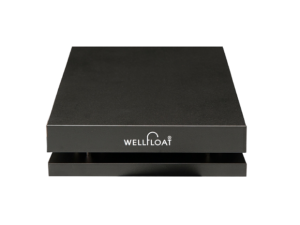

A4

Maximum Load Weight 20Kg, Recommended load 0-17Kg
Dimensions　210mm×297mm (A4) x 56mm
Material　MDF

A4-G

Maximum Load Weight 60Kg, Recommended load 0-40Kg
Dimensions　210mm×297mm (A4) x 56mm
Material　MDF

A4-F

Supported Load Weight 0-300Kg
Dimensions　210mm×297mm (A4) x 56mm
Material　MDF

WELLFLOAT – Other

Type One

Very compact and cost effective model. Only slightly larger than a CD case and best fit to small devices such as HDD for NAS, power blocks or step-up transformers.

Supported Load Weight　0-19Kg
Dimensions　 W125xD150xH55(mm)
Material　ABS resin

Welldisc (WELLFLOAT plates)

Stainless steel plates with special coating (WELL COATING) on both sides. Very robust giving better grip. Long lasting performance for humid environment. These plates can be used on or underneath a WELLFLOAT board to improve grip for better performance of products such as the feet of HiFi devices or spike shoes/pads.

Diameter 100mm,Thickness 1.6mm
Material　Stainless steel
